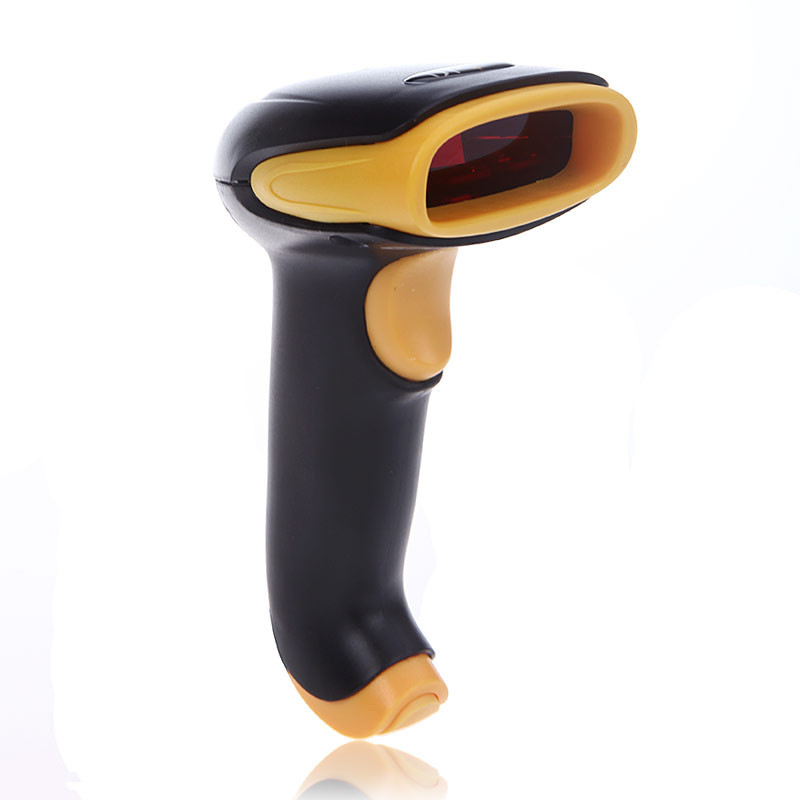

2.4G Wireless Cordless Laser Barcode Scanner Bar Code Reader
USB Automatic Handheld High Speed
This wireless laser barcode scanner works at the international 2.4G frequency with the receiver. Its effective communication distance can reach up to 150 meters in the open place and it can storage 5000 barcode data.
Features:
nUses 2.4G RF bi-directional wireless data transmission module.
nAutomatic frequency hopping, strong anti-interference capability.
nSuperspeed 250Kbps wireless transmission rate.
nThe communication distance in the open place is up to 150 meters. (The specific distance depends on the use environment.)
nPlug-n-play, USB receiver automatic pairing, no any driver is needed.
nEasy to check and can storage 5000 barcode data.
nAutomatic sleep mode and low voltage protection of the battery, largely prolongs the standby time of the battery.
nRich decoding types, advanced long-range functionality and long service life of button (up to 60000000 times).
nSupport the keyboard output of more than 20 different languages.
nIf the transmission distance is beyond the effective distance or data is not uploaded successfully, three short alarms will be given for prompt.
nThe independent mechanical ID enables each scanner has a unique identification number and guarantees that many sets of products cannot disturb each other when working simultaneously.

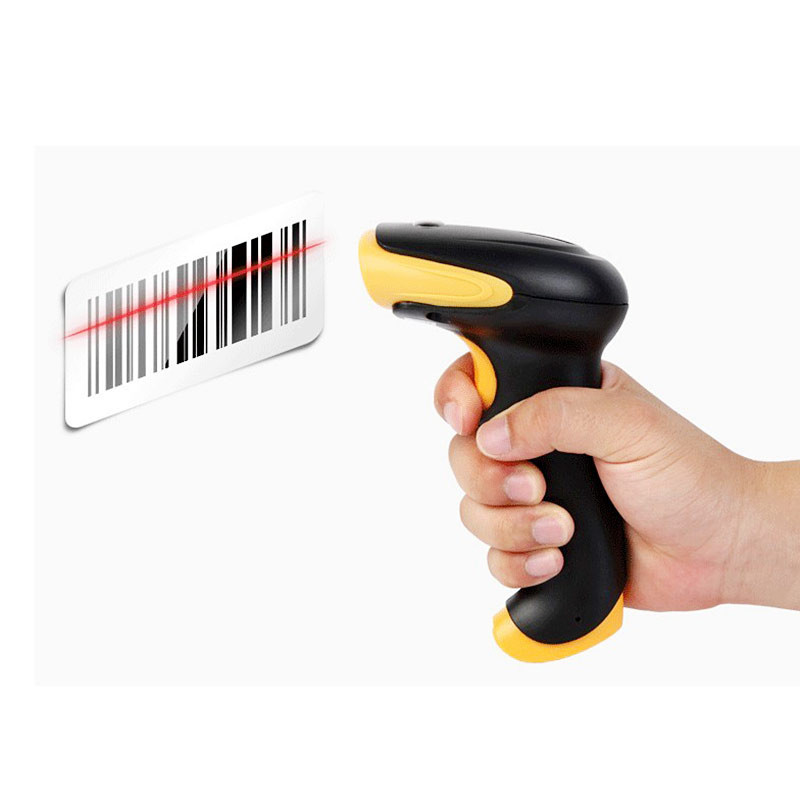

nBright and sharp laser beam reads thin barcodes accurately and correctly.
nWireless & handheld, very convenient and portable to use.
nCompact anti-shock & drop-resistance design, durable & high quality.
nWidely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.
Note: Dont point the scanners laser beam to eyes.
Specifications:
| Frequency | 2.4G |
| Communication distance | 30~150m |
| Light source | Visible lasing diode Wave length: 650nm |
| Scanning mode | Bi-directional single line scanning |
| Scanning speed | 200 scans / sec |
| Scanning accuracy | 0.10mm PCS0.9 |
| Scanning width | 30mm @ The scanner window, 220mm @ 200mm |
| Scanning depth of field | 0~350mm (0.43mm, PCS 98%) |
| Tilt & Elevation & Deflection | 30° & 75° & 65° |
| Interfaces supported | USB |
| Print contrast ratio | At least 30% reflectivity difference |
| Error rate | 1/5000000 |
| Promoting methods | Buzzer, LED indicator |
| Scanning ways | Trigger manually or continuous scanning |
| Decoding abilities | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal code, etc. |
| Power source | DC5V |
| Battery type | 800mA Lithium ion battery |
| Working current | 130mA (Total power consumption: 650mw) |
| Quiescent current | 70mA |
| Laser safety | National safety standard Class 2 |
| Electromagnetic compatibility | CE, FCC, DocCompliance |
| Operating temperature | 0 ~ 45 degree Celsius |
| Storage temperature | -20 ~ 60 degree Celsius |
| Humidity | Relative humidity 5% ~ 90% (No condensation) |
| Ambient brightness | Max. 5,000 lux (fluorescence) |
| Anti-knock | Can withstand 1.8 m free fall |
| Material | ABS + PC + Rubber |
| Cable length | Approx. 1m / 3.28ft |
| Product size | Approx. 8.7 * 7 * 16.8cm / 3.43 * 2.76 * 6.61in |
| Product weight | Approx. 135g / 4.76oz |
| Package size | Approx. 20 * 8 * 10.3cm / 7.87 * 3.15 * 4.06in |
| Package weight | Approx. 324g / 11.42oz |

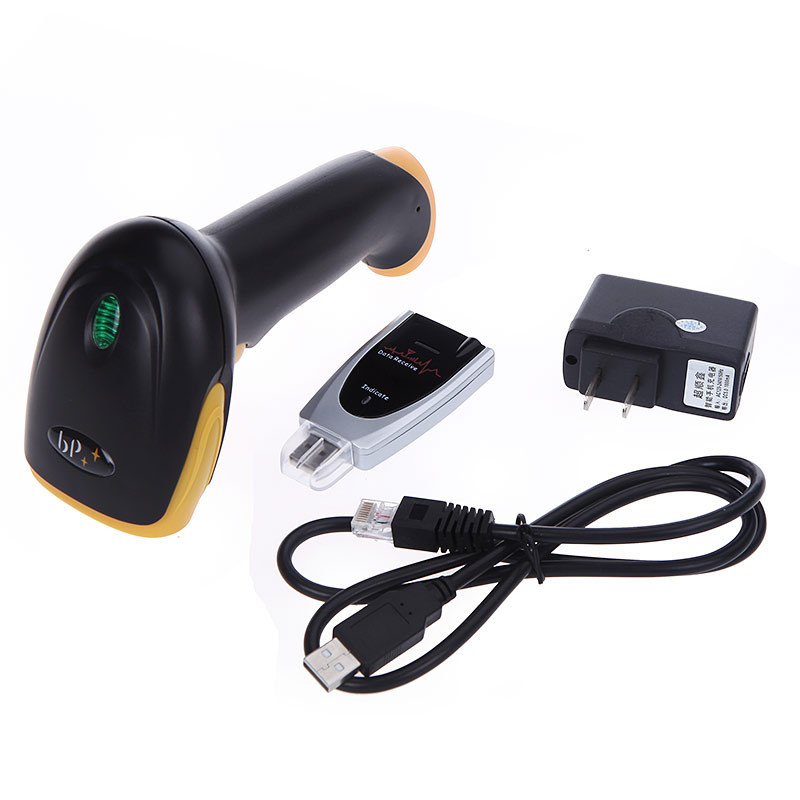

Package includes:
n1 * Laser scanner
n1 * USB power adapter
n1 * 2.4GHz receiver
n1 * USB charging cable
n1 * User manual
